high performance brushless dc motor High Speed 1000 - 4000RPM Three Phase Brushless Dc Motor For Household Appliances

  • 1
  • 2

Brand Name : Jkongmotor

Model Number : JK60BLS**SV1000

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$35 ~ US$85

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Rated Voltage : 48V

Rated Speed : 1000RPM - 4000RPM

Rated Power : 100W - 377W

Rated Torque : 0.3N.m - 1.2N.m

Rated Current : 2.8A - 9.5A

Insulation Class : B

MOQ : 10pcs

Contact Now





36V 48V Brushless DC Motor High Speed 1000RPM - 4000RPM For Household Appliances


1. Genaral Specification of high performance brushless dc motor:



 Item  Specification
 Winding type  Star
 Hall effect angle  120 degree electrical angle
 Shaft run out  0.025mm
 Radial play  0.02mm＠450g
 End play  0.08mm＠450g
 Max.radial force  115N ＠20mm form the flange
 Max.axial force  45N
 Insulation class  Class B
 Dielectric strength  500VDC for one minute
 Insulation resistance  100MΩ Min.,500VDC





2. Electrical Specification of brushless dc motor:



    Model
Specification Unit JK60BLS01 JK60BLS02 JK60BLS03 JK60BLS04
 Number Of Phase Phase 3
 Number Of Poles Poles 8
 Rated Voltage VDC 48(36V - 114V)
 Rated Speed Rpm 3000(1000RPM - 4000RPM)
 Rated Torque N.m 0.3 0.6 0.9 1.2
 Rated Current Amps 2.8 5.2 7.5 9.5
 Rated Power W 94 188 283 377
 Peak Torque N.m 0.9 1.8 2.7 3.6
 Peak Current Amps 8.4 15.6 22.5 28.5
 Back E.M.F V/Krpm 12.1 12.6 12.4 13.3
 Torque Constant N.m/A 0.116 0.12 0.118 0.127
 Rotor Inertia Kg.c㎡ 0.24 0.48 0.72 0.96
 Body Length mm 78 99 120 141
 Weight Kg 0.85 1.25 1.65 2.05
 Sensor Honeywell
 Insulation Class B
 Degree of Protection IP30
 Storage Temperature -25～+70℃
 Operating Temperature -15～+50℃
 Working Humidity 85% or under 85% RH(non condensing)
 Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
 Altitude 1000m or under 1000m

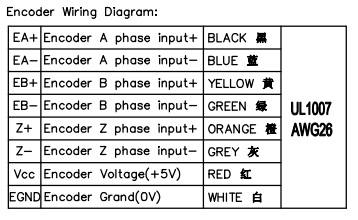

3. Wiring Diagram

 high performance brushless dc motor High Speed 1000 - 4000RPM Three Phase Brushless Dc Motor For Household Appliances

high performance brushless dc motor High Speed 1000 - 4000RPM Three Phase Brushless Dc Motor For Household Appliances
